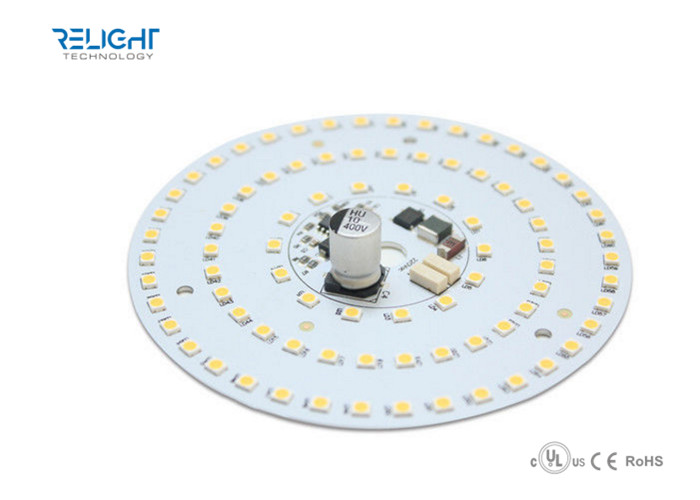

260mm AC Dimmable LED Module 12V Seoul Semiconductor 5630 LED 84pcs

260mm AC Dimmable LED Module 12V Seoul Semiconductor 5630 LED 84pcs

260mm AC Dimmable LED Module 12V Seoul Semiconductor 5630 LED 84pcs

Product Details:

Place of Origin: CHINA
Brand Name: RELIGHT
Certification: CW,ROHS
Model Number: AC-5630*84PCS

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Packaging Details: Customized packing design or packed in standard anti-static material
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: negotiation
Detailed Product Description
Product Name: AC-5630*84PCS Application: Ceiling, Down Light
CRI: >80 CCT: 2700-6500k
Efficiency(LM/W): 130lm/W Input Voltage: 110-220 AC
Connector: Wago Connector

260mm AC Dimmable LED Module 12V Seoul Semiconductor 5630 LED 84pcs





Quick Details:



Name  Shape LED info PCB Material/Size
(mm)
Voltage
V
Driver Current
mA,Max
PF Power
(W)
CCT
(K)
CRI Lm/W Remark
AC
Module
Square SMD5730
84pcs
FR4           H(1.0-1.6mm)  260*260 220V AC
110V AC
/ 0.95 16W 3000K
4000K
6000K
80 100-110 Wago
 connector





Description:



Product Name: AC-5630*84PCS Application: Ceiling, Down Light
CRI: >80 CCT: 2700-6500k
Efficiency(LM/W): 130lm/W Input Voltage: 110-220 AC
Connector: Wago Connector





Applications:



1. Ceiling lights

2. Advertisement light-box

3. Commercial luminaires

4. Channel lights

5. Troffer lamps
6. Architectural lighting
7. Decorative lighting

8. Panel lights

9. Down lights





Description



Ø Ideal for Down lights, Lowbay,Ceiling



Ø Module efficiency up to 140lm/W



Ø Colour tolerance 5 steps



Ø High colour rendering index CRI > 80(3000K,4000K),CRI>70(6000K)



Ø Push terminals for quick and simple wiring Simple installation (e.g. screws)





Technical Date



Ø Operating module at 300mA



Order Code

-mA

VV



CCT

-K



Flux

-lm

CRI

Typ.Efficiency lm/W

RL-TOC88DA1008C-830

300

28-29.5

3000

1000

80

125

RL-TOC88DA1008C-840

300

28-29.5

4000

1050

80

135

RL-TOC88DA1008C-760

300

28-29.5

6000

1150

70

140



Ø Operating module at 350mA



RL-TOC88DA1008C-830

350

29.5-31

3000

1150

80

120

RL-TOC88DA1008C-840

350

29.5-31

4000

1250

80

130

RL-TOC88DA1008C-760

350

29.5-31

6000

1350

70

135
