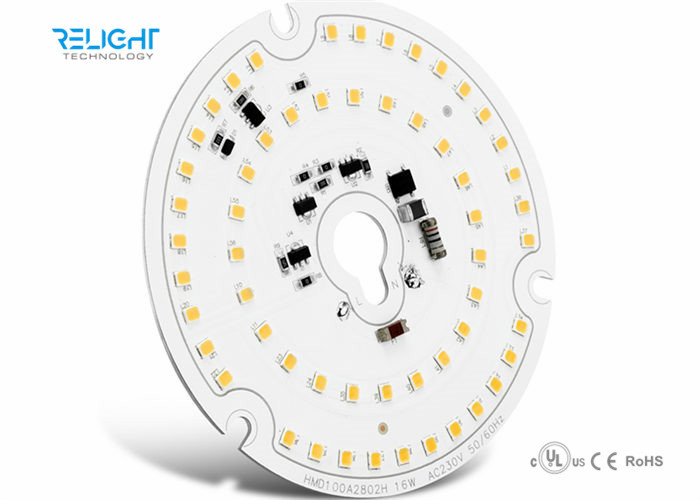

TRIAC Dimmable 16w Led Module round AC 230V High efficiency led Down light

TRIAC Dimmable 16w Led Module round AC 230V High efficiency led Down light

    • TRIAC Dimmable 16w Led Module  round AC 230V High efficiency led Down light
    • TRIAC Dimmable 16w Led Module  round AC 230V High efficiency led Down light
    • TRIAC Dimmable 16w Led Module  round AC 230V High efficiency led Down light
  • TRIAC Dimmable 16w Led Module  round AC 230V High efficiency led Down light

    Product Details:

    Place of Origin: CHINA
    Brand Name: RELIGHT
    Certification: CE RoHS
    Model Number: RL-TODD70A2801HV09

    Payment & Shipping Terms:

    Minimum Order Quantity: 100PCS
    Price: negotiation
    Packaging Details: Customized packing design or packed in standard anti-static material
    Payment Terms: T/T
    Supply Ability: negotiation
    Contact Now
    Detailed Product Description
    LED: 2835 AC: 230V
    Power: 9W/16W Efficiency: 100LM/W
    Material: Al Board Size: 100mm
    Brand: Sanan/Samsung THD: 15%
    Certificates: CE ROSH UL QTY LED: 56PCS


    RELIGHT AC 230V Round  Module  Dimming 100MM 9W 16W  downlight module


    Quick details

    D100mm High efficiency AC 230V LED module
    Led source: 2835
    Size 100mm
    Rated Watts: 16W
    Output Voltage: 230V
    Material: Al board
    PCB Thermal conductivity: 2.0
    IP 20
    Luminus(lm): 1760LM
    /CCT(K): 2700-6500K
    Ra: 80/90










    Detailed parameters:






    P/N

    Current

    PF

    Power

    Lumens

    LPW

    CCT

    CRI

    - mA - W LM LM/W K -

    RL-TODD100A2802HV16-830

    70

    >0.98

    16

    1700

    100

    3000

    80

    RL-TODD100A2802HV16-840

    70

    >0.98

    16

    1800

    110

    4000

    80

    RL-TODD100A2802HV16-850

    70

    >0.98

    16

    1800

    110

    5000

    80

    RL-TODD100A2802HV16-865

    70

    >0.98

    16

    1800

    110

    6500

    80

    RL-TODD70A2801HV09-830

    40

    >0.95

    9

    900

    110

    3000

    80

    RL-TODD70A2801HV09-840

    40

    >0.95

    9

    1000

    110

    4000

    80

    RL-TODD70A2801HV09-850

    40

    >0.95

    9

    1000

    110

    5000

    80

    RL-TODD70A2801HV09-865

    40

    >0.95

    9

    1000

    110

    6500

    80





























































    Advantage :



    •  Ideal for Down lights, Lowbay,bracket lamp
    •  AC input directly
    •  EMI compliance
    •  High-pot level: 1.5kv
    •  Surge protection: 2.5kv, dimming, triac dimming

    Product details:





    TRIAC Dimmable 16w Led Module  round AC 230V High efficiency led Down light

    TRIAC Dimmable 16w Led Module  round AC 230V High efficiency led Down light





    High Efficiency with big size chip



    Better heat dissipation with high quality lead frame and pure golden wire



    Equipped with LED encapsulating production line, to meet varied standards in BIN and CRI



    Cooperated with world grand brand, to offer customer specified LED.





    Characteristics

    • Input Voltage 200~240Vac
    • Frequency 50/60Hz
    • Protection IP20
    • Surge level 2.0KV
    • Hi-pot 1.5KVac
    • Storage temperature -30-85℃
    • Operation temperature -30-90℃(Ts of led components)
    • Beam Angle 120 deg




    Application

    • Down light
    • Sort light
    • Bulb lamp



    TRIAC Dimmable 16w Led Module  round AC 230V High efficiency led Down light

    TRIAC Dimmable 16w Led Module  round AC 230V High efficiency led Down light













    Safety Information

    1. The LED module and all its components shall not be subjected to mechanical stress

    2. Correct electrical polarity, or not module may be damaged

    3. Ensure the power supply is suitable for the total load.

    4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.

    5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.

    6. Modules may be hot to the touch. Use caution when handling.
