Driverless LED module 23W 110lm/w Dimmable LED Module with Aluminum PCB

Driverless LED module 23W 110lm/w Dimmable LED Module with Aluminum PCB

Driverless LED module 23W 110lm/w Dimmable LED Module with Aluminum PCB

Product Details:

Place of Origin: CHINA
Brand Name: RELIGHT
Certification: CE RoHS
Model Number: RL-HMD180A2802H023-830FF

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Packed in standard anti-static materials or Customized packing design is available
Delivery Time: 10-12 working day
Payment Terms: T/T, Western Union
Supply Ability: negotiable
Contact Now
Detailed Product Description
PCB: ALUMINUM LED: Samsung / JF
CRI: 80ra (90/95ra Avaialble) Lumen: 2000-2300lm
Size: 180mm High-pot Level: 1.5KV
PF: 0.9 Flicker: <1.5%

Driverless LED module 23W 110lm/w Dimmable LED Module with Aluminum PCB





Quick details:



* Voltage: 230V
* Power: 23W
* Flux: 2000-2300lm
* LED: Chinese chip(Samsung/LG/CREE for option)
* PF: 0.9
* SDCM: 5
* CCT: 2700K/3000K/4000K
* CRI: 80RA
* PCB Materials: Aluminum
* PCB Size: Dia180mm
* Dimmming: Triac (1-10V/ PWM is available)
* Warranty: 2 years




Features:

* AC 230V input directly

* PEMI compliance
* THDI: <15%
* Surge protection: 2.5KV
* High-pot level: 1.5KV

* Ultra-low Flicker: <1.5%

* Various CCT available



Standard Round Module series:


P/N Size (mm)  Input (Vac) PF Flicker(%) Power(W) Flux(Lm)

CRI

RL-HMD70A2801H016-830FF 70 230 0.9 <1.5 16 1400-1600 80
RL-HMD100A2802H016-830FF 100 230

0.9

<1.5 16 1500-1800 80
RL-HMD180A2802H023-830FF 180 230 0.9 <1.5 23 2000-2300 80
RL-HMD70A2801H016-830TB 70 230 0.9 <1.5 16 1600-1800 80

RL-HMD100A2802H016-830TB

100 230 0.9 <1.5 16 1600-1900 80
RL-HMD180A2802H023-830TB 180 230 0.9 <1.5 23 2300-2500 80

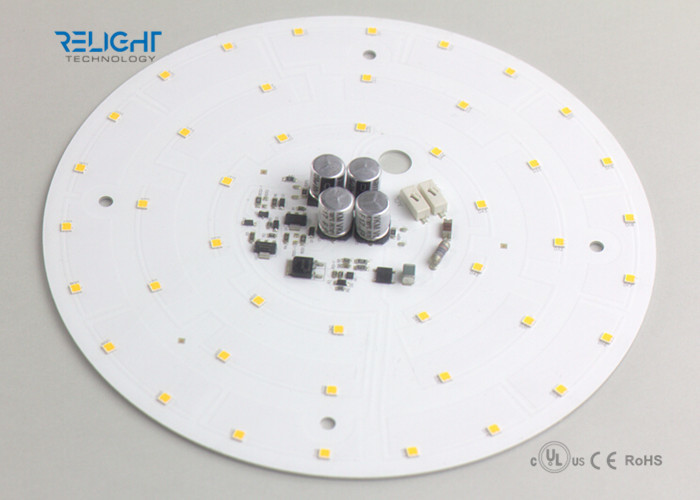

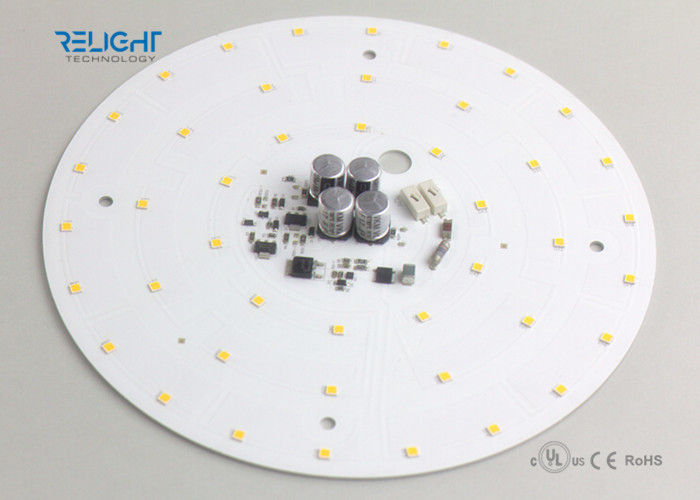

Product images:


Driverless LED module 23W 110lm/w Dimmable LED Module with Aluminum PCB

Driverless LED module 23W 110lm/w Dimmable LED Module with Aluminum PCB





Application:

* Panel Light
* DownLight
* Ceiling Light

* Track light

* Pendant
* Wall Light



Driverless LED module 23W 110lm/w Dimmable LED Module with Aluminum PCB

Driverless LED module 23W 110lm/w Dimmable LED Module with Aluminum PCB
