Shenzhen Relight Technology Co.,Ltd
Comfort and Art
Professional LED module designer and manufacturer
LED creative lamps and customized luminaires
| Place of Origin: | China |
|---|---|
| Brand Name: | Relight |
| Certification: | CE |
| Model Number: | RL-280*20-UVC-3535-270 |
| Minimum Order Quantity: | 1pc |
| Price: | 32 ~ 35usd/pc |
| Packaging Details: | neutral package |
| Delivery Time: | 7 ~ 15 days |
| Payment Terms: | T/T paypal |
| Supply Ability: | 100000pcs per month |
| Voltage: | 24VDC | PCB: | Aluminum |
|---|---|---|---|
| Current: | 400mA | Power: | 9.6W |
| Wavelength: | 275nm | Radiant Flux: | 192 ~ 216mW |
| High Light: | Troffer Panel UVC Germicidal Light,9.6W UVC Germicidal Light,400mA Troffer Panel Linear Light |
||

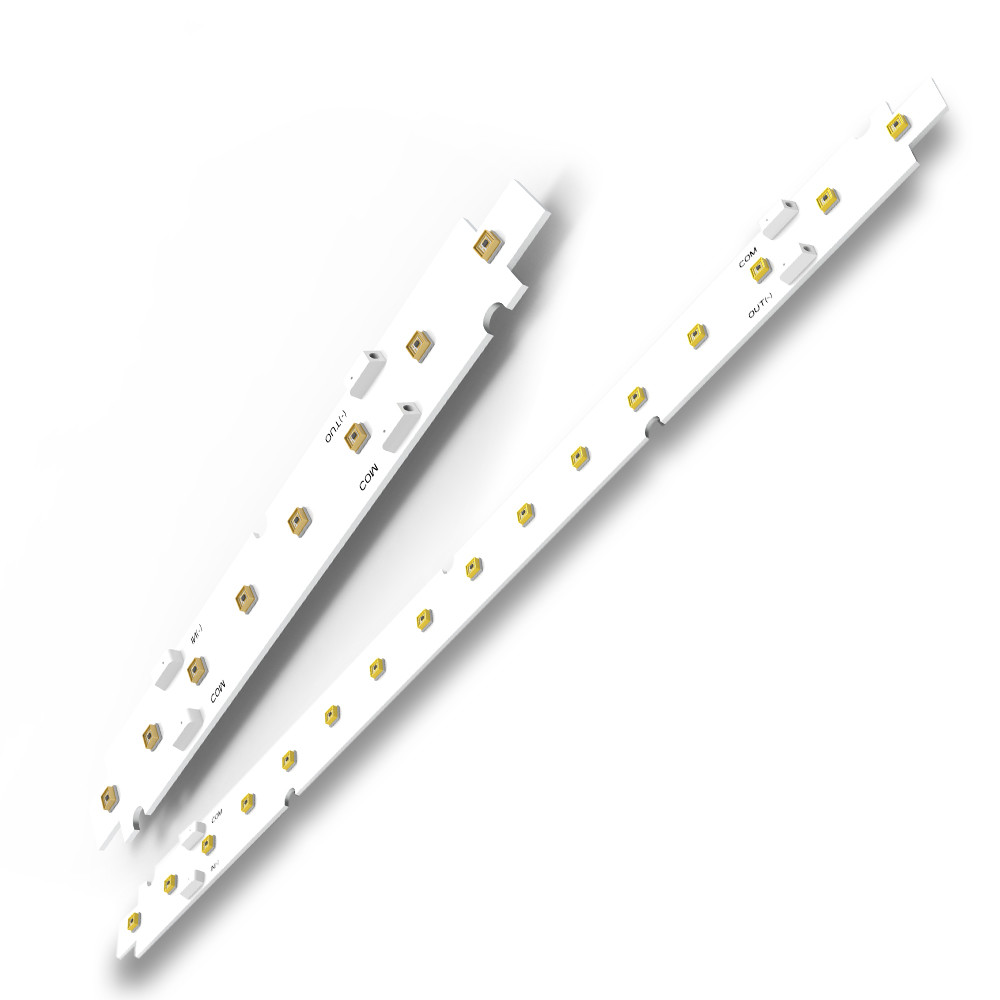

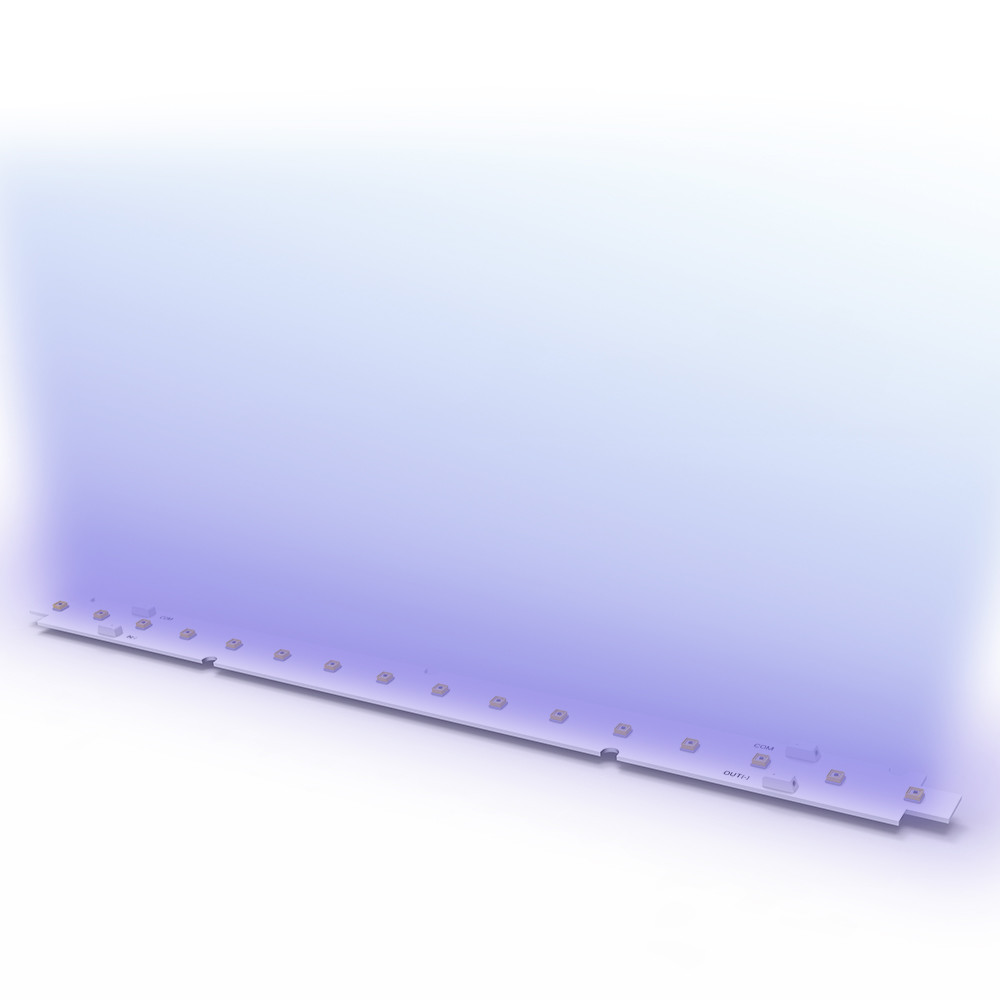

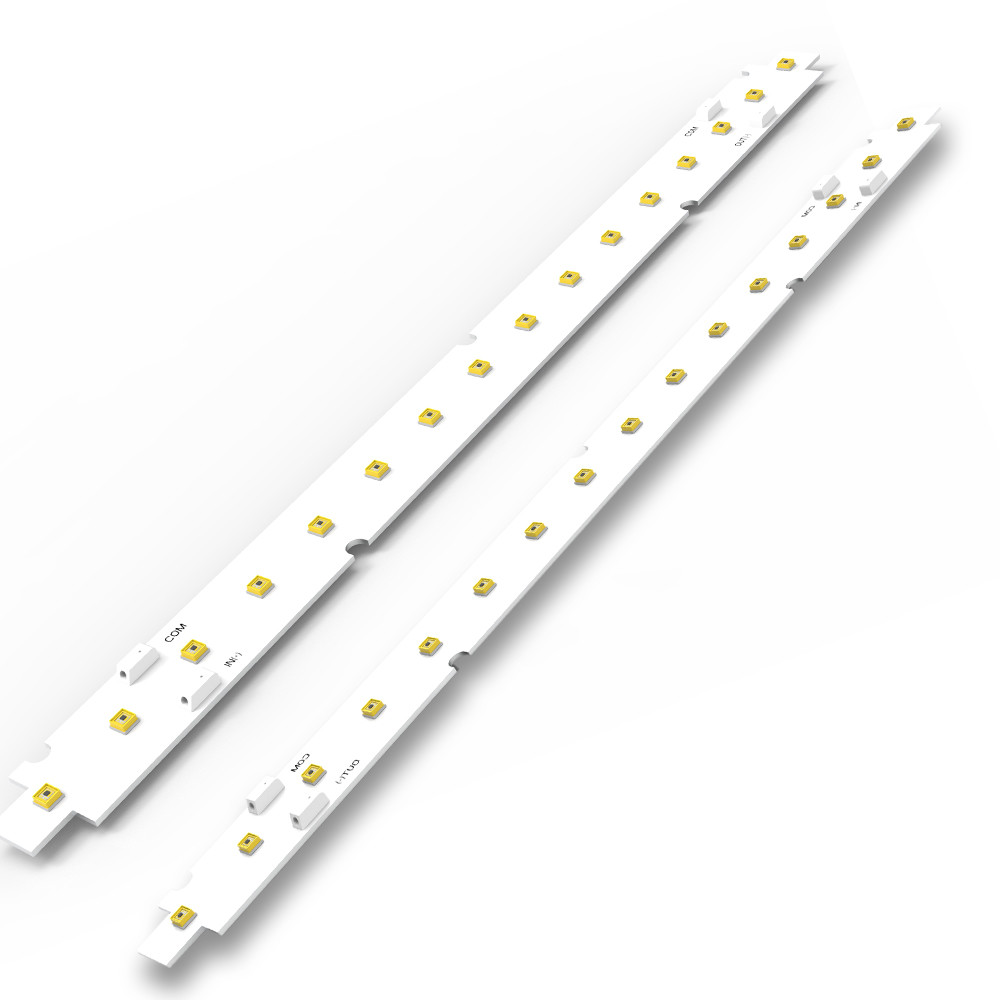

UVC Germicidal Light 24V LED Module for Tube Troffer Panel Linear Light
Feature
1. Peak wavelength: 265 ~ 285nm
2. Radiant flux: 192 ~ 216mW
3. Forward voltage: 24VDC
4. Solutions for Linear light / Troffer
5. Poke in wiring connectors
Dimension
Length: 280mm / 11inch
Width: 20mm / 0.79inch
Height: 4mm / 0.16inch
Characteristics
1. Absolute max current: 400mA / CH
2. Rated power: Typical power (±10% tolerance)
3. IP grade: IP20
4. Storage temperature: -30 ~ +85℃
5. Operation temperature: -30 ~ +80℃
6. Beam angle: 120 deg
7. Connectors: poke-in type
Package
PVC tube: 1pc led module
PVC weight: 0.028kg/pc
Dimension: 300*2688mm
Carton: 800pcs led module
Gross weight: 22kg/ctn
Dimension: 700*320*320mm
