| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | Relight |
| Certification: | UL/CE/ETL |
| Model Number: | Dual 2110 strip |
| Minimum Order Quantity: | 500M |
| Price: | Negotiated |
| Packaging Details: | 5M/roll |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000M/Week |
| Material: | FPCB+Chip | Led Brand: | Samsung 2110 |
|---|---|---|---|
| FPCB Width: | 8mm | Package: | 16.4ft/roll |
| Led QTY: | 308PCS/M | Installation: | 3M Tape Backside |
| CCT: | 2700K/4000K | CRI: | 90 |
| Warranty: | 5years | ||
| High Light: | SMD2110 dual color waterproof led strip,FPCB waterproof led strip,CRI 90 IP68 led strip |
||

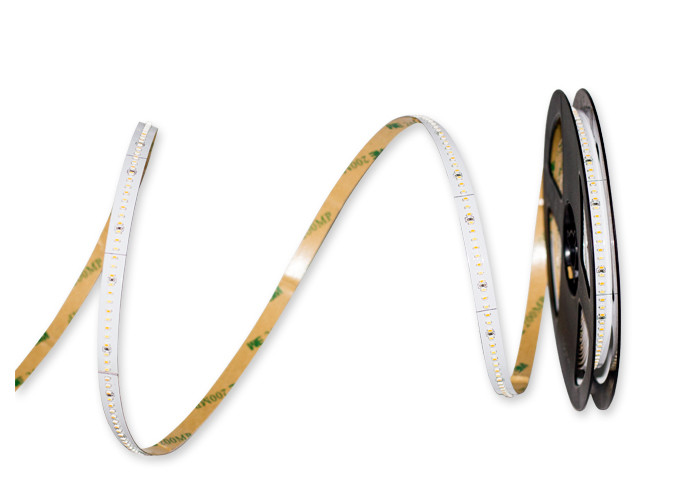

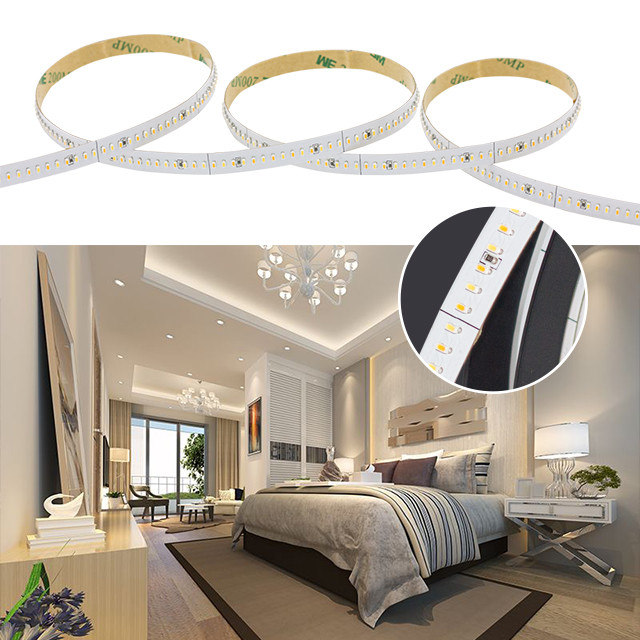

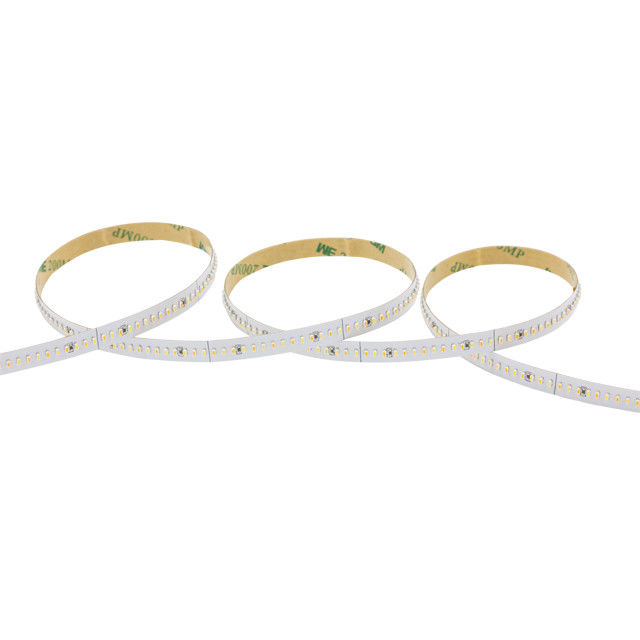

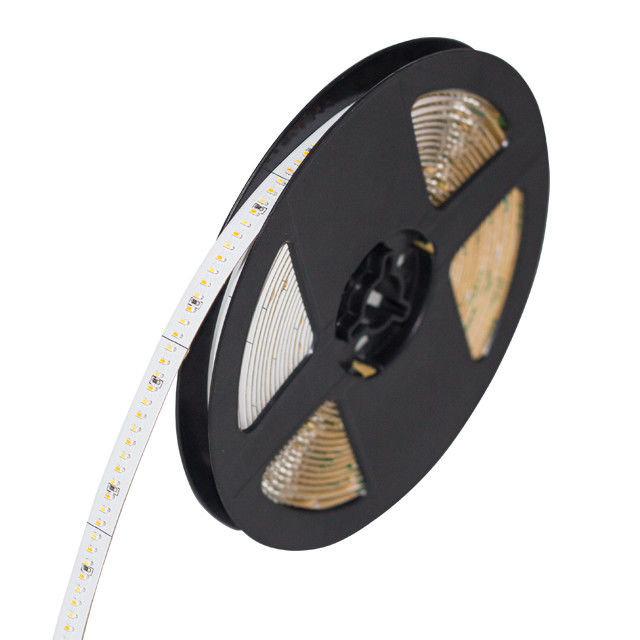

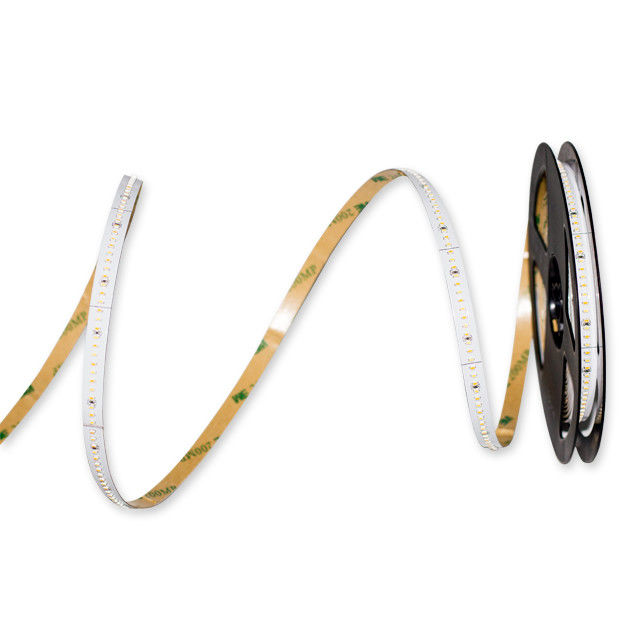

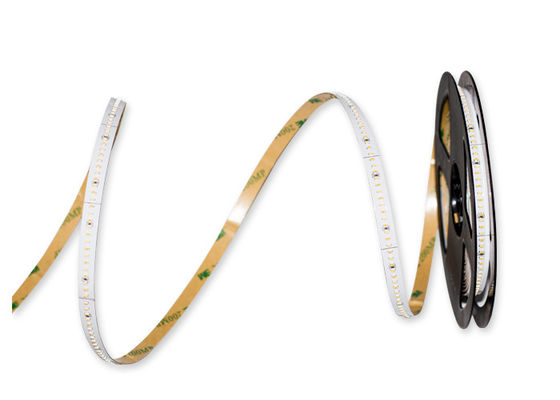

SMD2110 Waterproof Led Strip Flexible Dual Color With Smart Controller
Detailed product description
Quick detail:RL-FS2408120IP202835-930
Dual color SMD2110 LED strip light key features
| PN | RL-FS2408120IP202835-930 |
| Input voltage | DC24V |
| CRI | 90+ |
General application:
Part Number & Explanation (Example: RL-FS2408120IP202835-930)
| RL | F | 24 | 08 | 120 | IP | 20 | 2835 | 9 | 30 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 1 | RL Relight |
| 2 | F Flexible |
| 3 | 24 Voltage; 12: DC12V; 24:DC24V |
| 4 | 08 Wide 05:5mm 08:8mm ; 10:10mm; 12:12mm; |
| 5 | 120 LEDs/Meter 60:60LEDS 120:120LEDS 140: 140LEDS |
| 6 | IP IP Level; |
| 7 | IP20 IP54 IP65 IP67 IP68 |
| 8 | 2835 LED package |
| 9 |
9 CRI 8:80;9:90;U95; |
| 10 | 30 CCT; 30:3000K … |
Competive advantages:
1. Our SMD LED Use Copper Base and Gold Wire Which Provide Good Heat Dispersion, Long Life Span and Low Luminous Decay.
2. Our Flexible PCB Are All High Quality Double Layers PCB, at Least 2 Ounces, or 3 Ounces in Particular Models.
3. We Always Require Same Bin Number SMD LEDs for Different Production Batches for the Same Customer.
4. We Have Everfine Integrating Sphere to Test the Color Temperature of Incoming Smd LEDs and Put It in Our QC Records for Every Batch. Normally 5 Macadam LED is +/-100k
5. We Can Produce 3 Macadam LED Strip/tape as Customer Request.
FAQ:
A: Order directly from salesperson after you sent QTY and your details requests, we have free samples for mass QTY.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for mass production
A: MOQ 500M after samples are tested good.
A: We usually ship by DHL, UPS, FedEx. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and arranged the payment for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, most products are 3years, some are 5years.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Tag: LED strip light, dual color smart lighting, controller led strip, color changing strip
