Shenzhen Relight Technology Co.,Ltd
Comfort and Art
Professional LED module designer and manufacturer
LED creative lamps and customized luminaires
| Place of Origin: | China |
|---|---|
| Brand Name: | Relight |
| Certification: | CE,ROHS |
| Model Number: | RL-FSL2419042IP672835-827 |
| Minimum Order Quantity: | 100M |
| Price: | 7.8-8.5USD/M |
| Packaging Details: | carton |
| Delivery Time: | 15 workdays |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/month |
| Color Temperature(CCT): | 2700K | LED Light Source: | SMD2835 |
|---|---|---|---|
| LED Quantity: | 42leds/m | IP Rating: | IP67 |
| Warranty: | 3years | Voltage: | DC24V |
| High Light: | SMD2835 Flexible LED Strip Lights,SMD2835 Led Wall Washer Light,42 leds/m Flexible LED Strip Lights |
||

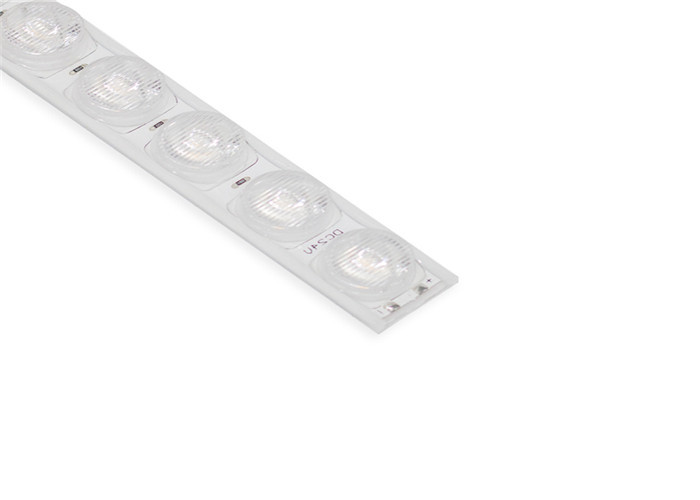

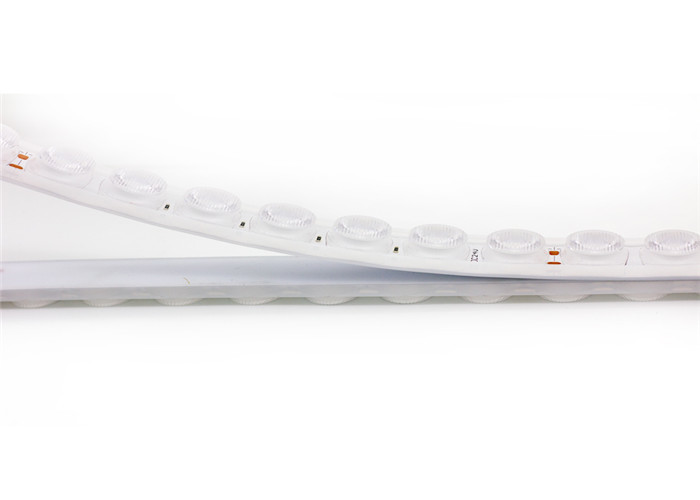

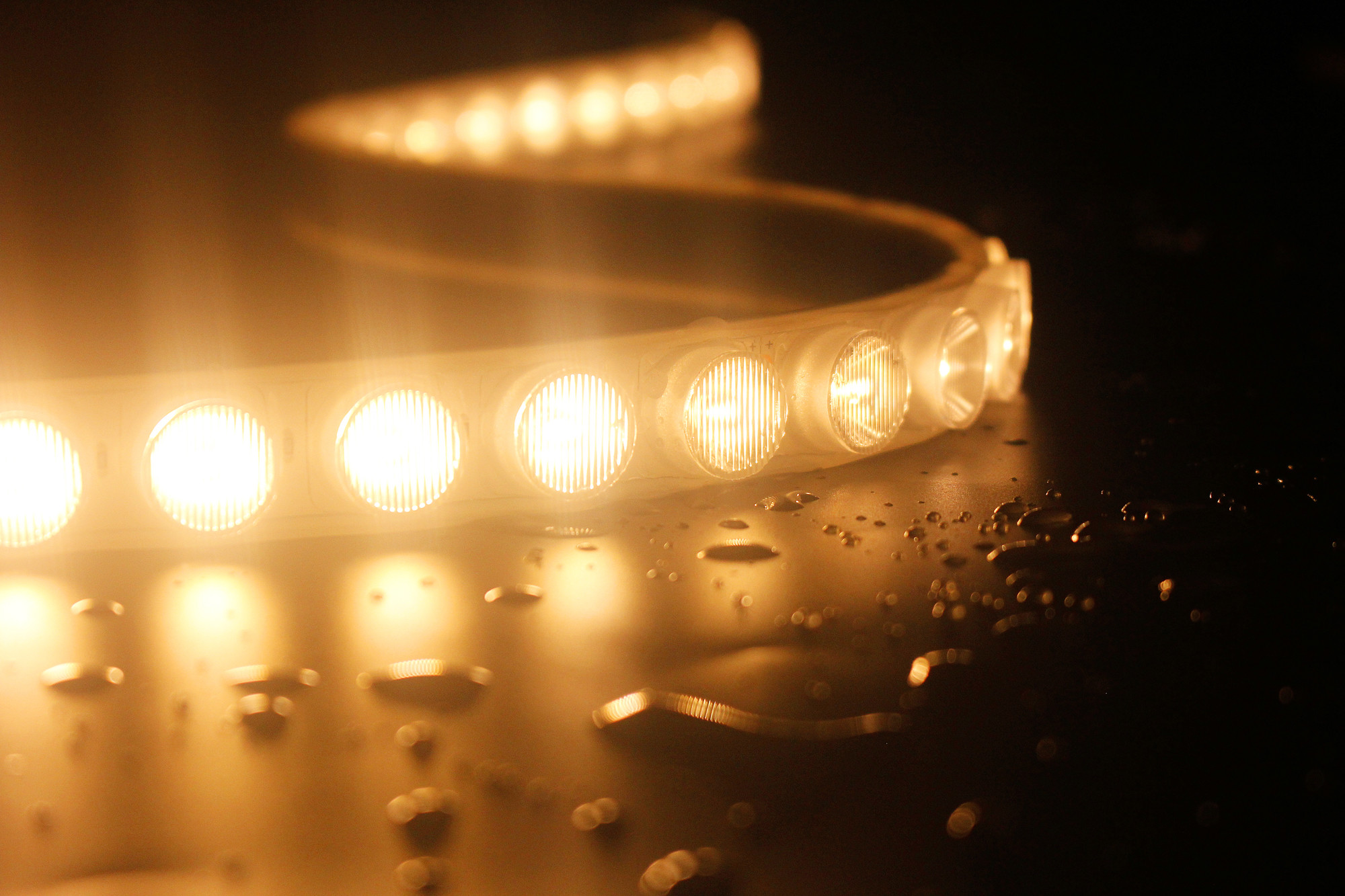

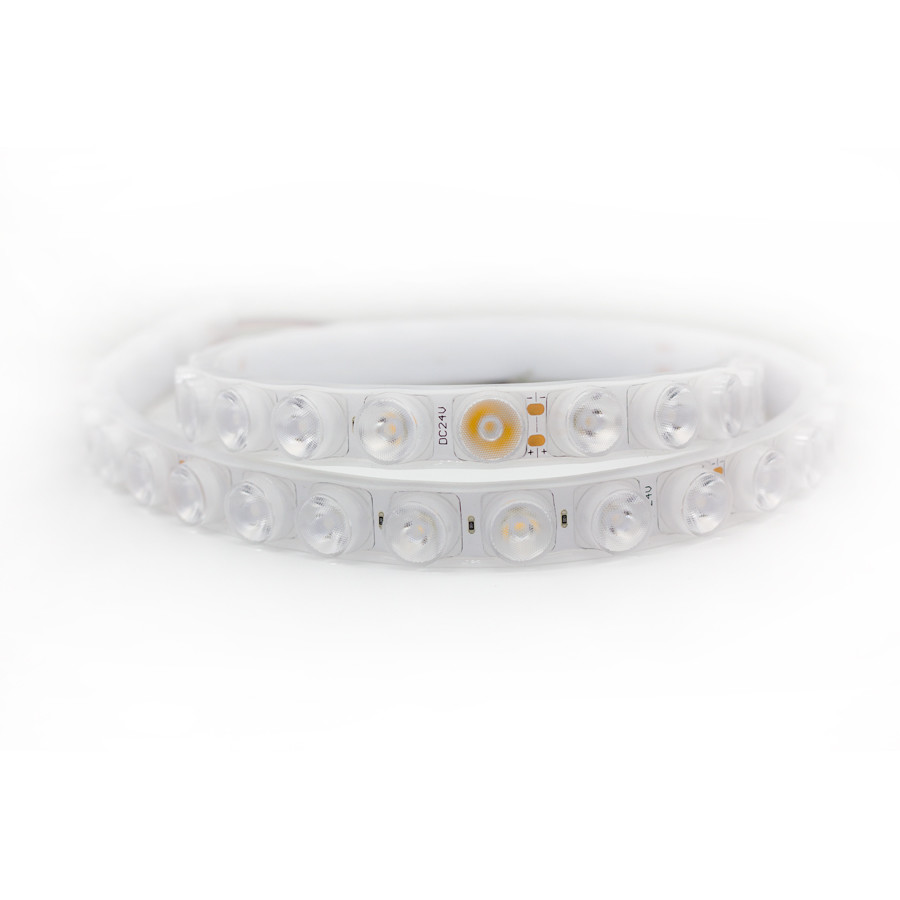

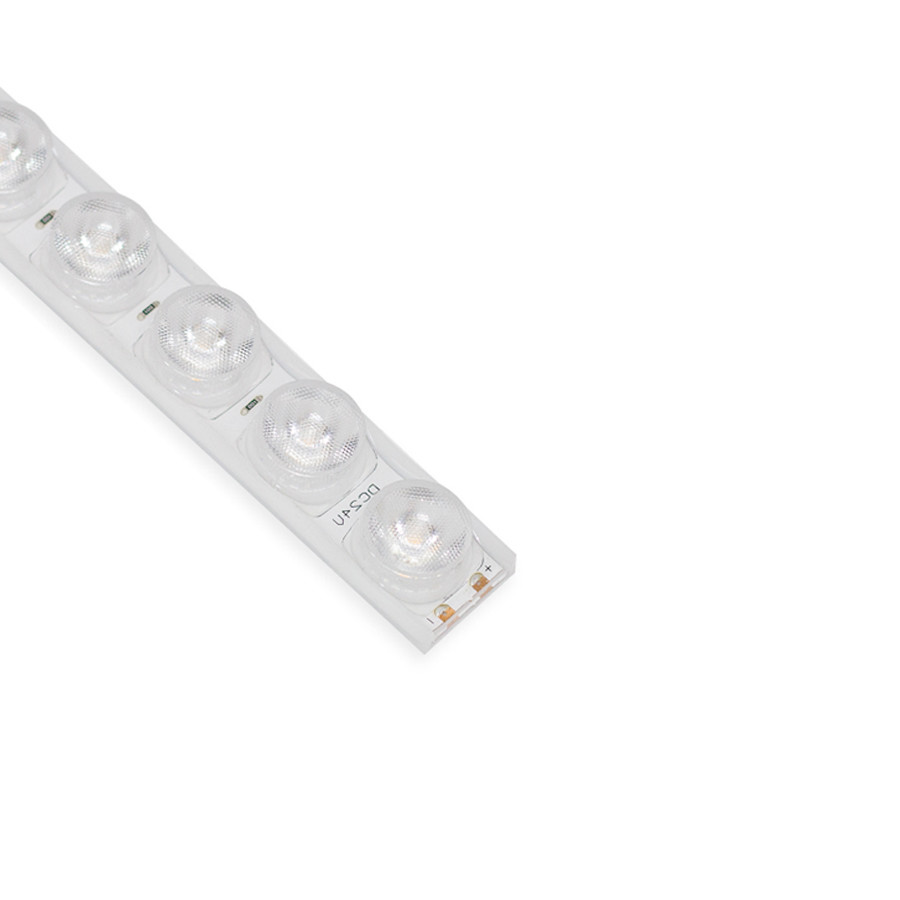

SMD2835 Flexible LED Strip Lights Recessed Led Wall Washer Light
Recessed led wall washer light track light flexible water ripple
Features:
Optical parameters:
| PN | Color | CCT(K) | CRI | SDCM |
Beam angle (°) |
Luminous flux(lm/m) |
Efficiency (lm/W) |
Vf. (V.) |
Current (mA)/M
|
Power (W)/M
|
|
RL-F242042 IP67 2835-8** |
WW/NW/ CW |
2700/4000 /6500 |
≥80 | <3 | 25°(Polarized 20°)/15*45/30° | 2660 | 133 | DC24 | 833 | 20 |
Other parameters:
| PN |
Protection grade |
Working temperature (℃) |
Storage temperature (℃) |
Standard length (m) |
Maximum cascade length(m) |
LED QTY. (pcs/m) |
| RL-F242042IP672835-827 | IP67 | -25~+60 | -25~+70 | 5 | 5 | 42 |
Remark:
(1) The test environment temperature is 25±2℃;
(2) The above data are typical values, and the actual parameters of the product may be different from the
typical data. The data is subject to change without notice;
(3) The color temperature is marked as the color temperature of the LED , because the refraction of the
silicone tube will cause the color temperature to change after the silicone tube is added. The color
temperature of the final product should be subject to the actual sample;
(4) The above "--" means that this parameter is not required for the time being.
