Shenzhen Relight Technology Co.,Ltd
Comfort and Art
Professional LED module designer and manufacturer
LED creative lamps and customized luminaires
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | RELIGHT |
| Certification: | CE, UL |
| Model Number: | RL-LFS24060IP205050RGB |
| Minimum Order Quantity: | 500M |
| Price: | 1-5$/M |
| Packaging Details: | Customized packing design or packed in standard anti-static material |
| Delivery Time: | 10 working days after payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | negotiation |
| Application: | Landscape/Bar/Hotel/Residential | Size: | 1000*10mm |
|---|---|---|---|
| LED/M: | 60 | Waterproof: | IP20/65/67/68 |
| Packing: | 5/10M Per Reel | LED Chip: | SMD5050 RGB |
| PCB Material: | FPC | ||
| High Light: | rgb led strip light,flexible multi-color led light strip |
||

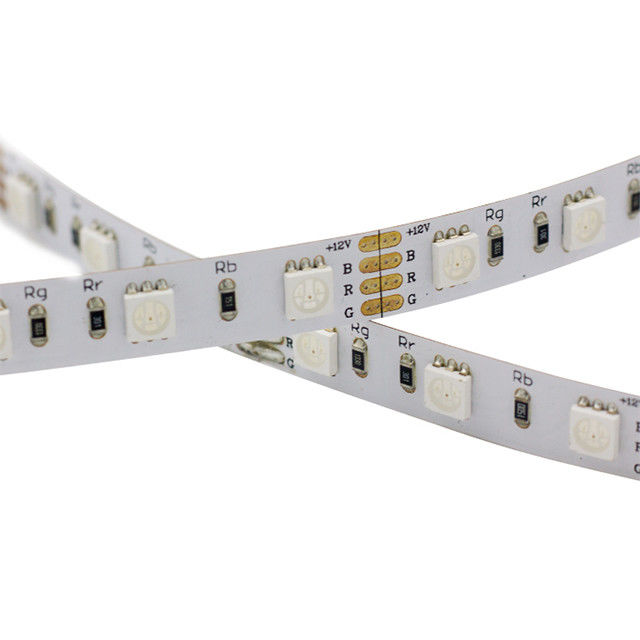

Muti Color DC 12 / 24V 5050 SMD RGB Flexible LED Strip Lights
Key Feature
Absolute maximum ratings with LED at TA=25℃
| Part number :5050RGBW-C-C2 | |||
| Parameter |
Symbol
|
Rat |
Unit
|
| Forward current | If | 20 | mA |
| Reverse voltage | Vr | 5 | V |
| Power dissipation | Pd | 60 | mW |
| Operate temperature | Top | -20~+80 | ℃ |
| Storage temperature | Tstg | -40~+80 | ℃ |
| Peak forward current | Ifp | 100 | mA |
Optical Characteristics with LED at TA=25℃
| Parameter |
Text Condition
|
Emitting color
|
Value |
Unit
|
||
| Min | Avg | Max | ||||
| Dominant wavelength and temperature |
If=20mA (R) If=20mA (G) If=20mA (B) If=20mA (W) |
R G B W |
620 465 520 2700 |
-- -- -- -- |
630 670 530 12000 |
nm
K |
|
Forward voltage
|
If=20mA (R) If=20mA (G) If=20mA (B) If=20mA (W) |
R G B W |
1.8 3.0 3.0 3.0 |
-- --
|
2.2 3.4 3.4 3.4 |
V |
|
Luminous Flue
|
If=20mA (R) If=20mA (G) If=20mA (B) If=20mA (W) |
R G B W |
2 1 3 7 |
-- -- -- -- |
3 2 4 8 |
LM |
|
Luminous intensity
|
If=20mA (R) If=20mA (G) If=20mA (B) If=20mA (W) |
R G B W |
500 200 1000 2500 |
-- -- -- -- |
700 300 1500 3000 |
mcd |
Specifications of the FPC
| Model No. | 60LEDS/M |
| Dimension-----mm/reel | 5000*12*2 |
| Power/reel-----W | 96W |
| Leds/reel-------pcs | 300 |
| Lumens/reel—Lm | 3700LM |
| Voltage----------V | 24V |
| Current----------A | 4A |
| CCT--------------K | RGB/6000K | |
| CRI/White | 80 | |
| Beam Angle----deg | 120 | |
| Interval----mm |
Per
cutting section |
100mm |
| LEDs------pcs | 6 | |
| Lumens---Lm | 74LM | |
| Power / LED | 0.24W | |
| IP | IP20/44 | |
| Warranty | 1years | |
Dimensions
Typical application diagram
Application one:
Application two:
Safety Information
1. The LED module and all its components shall not be subjected to mechanical stress
2. Correct electrical polarity, or not module may be damaged
3. Ensure the power supply is suitable for the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module.
5. Installation of LED modules shall be made refering to all applicable electrical and safety standards.
6. Modules may be hot to the touch. Use caution when handling.
RGB controller & Adapter
Model: RGB-Controller
Working Temperature: -20℃~60℃
Voltage: DC12V, 24V
Output current: 6A/Channel
Load capacity:40W/60W/100W
Model Number: Adapter
WorkingTemperature:-20℃~60℃
Input voltage:100-240Vac/50-60Hz
Output voltage: DC12V, 24V
Load capacity:40W/60W/100W
1. Why choose us?
First of all, quick respond, save your time, time equals money, so we save money for you. See, you are already saving money, even you contact us.
2. Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
Sample needs 3-7 days, mass production time needs 3-4 weeks.
4. Do you have any MOQ limit for led light order?
Low MOQ, 1 pc for sample checking is available.
5. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive. Tell us which one you would like, we will keep that in mind.
6. How do I pay?
My friend, there are many ways. T/T(we prefer this one), Western Union, Paypal, and L/C, choose your favorite one.
7. How to proceed an order for led light?
Firstly, let us know your requirement or application.
Secondly, we quote according to your requirement or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
8. Is it OK to print my logo on the led light product?
Yes, we provide OEM and ODM service. Please inform us formally before our production and confirm the design firstly based on our sample.
9. What is quality guarantee policy?
2 years warranty for all goods from RELIGHT.
